Pro-Dent CT Mini
[ click the picture ]
The new Pro-Dent CT MINI phantom is a versatile quality control tool of dental Cone-Beam CT, Dental Volume Tomography (DVT) and other 3D imaging devices with even smallest FOV (Field Of View).
The phantom consists of a main PMMA cylinder that houses modules with different test objects.
It allows performing most important imaging quality test such as:
- image geometry
- slice geometry
- pixel (matrix) size
- artefacts, noise
- homogeneity
- linearity
- contrast
- high-contrast resolution
- low-contrast resolution (contrast sensitivity
Technical data (can be modified to customer specifications):
- diameter: 110mm
- length: 130mm
- made of PMMA (1.19 g/cm3)
- main cylinder contains markings for easy positioning in the dental unit and geometric distortion section: –– an array of 2.0 mm diameter, 3.0 mm long holes uniformly pitched at 10.0 mm intervals
- 20mm thick noise / uniformity module
- linearity module: –– containing 15 mm rods made of PTFE, poliamid, PE-300, air and water emulating epoxy embedded PMMA - pixel intensity / HU values samples
- high contrast resolution module containing: –– 7 objects for resolution evaluation: 10, 11, 12, 13, 14, 15, 16 LP/cm –– 0.3mm bead for Modular Transfer Function (MTF) calculation
- low contrast section containing: –– rods of a different diameter: 2, 3, 4, 6, 8, 10, 12mm, filled with a substance whose density is 3% different from the body of the module
- slice geometry module containing: –– 4 air rods, 3mm in diameter, places in vertices of the 30mm square –– two aluminium wire ramps

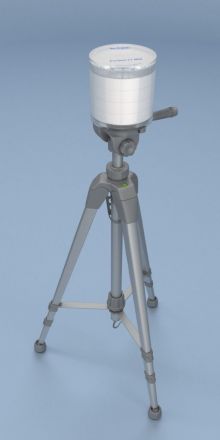

- test stand with spirit level for accurate placing of the phantom in the test position
- convenient, portable case for storing and transporting the phantom
Product features:
- complies with: –– IEC 61223-3-4 and IEC 61223-3-5
- CE certified
- the Manual provides detailed guidelines for carrying out each test, results assessment and registration
Pro-Dent CT MINI - 01-303
