BEXXAR Shipping System

[ click the picture ]

Nuclemed - click to enlarge Nuclemed - click to enlarge
  • Single twist thread to open and close
  • No exposed lead, polycarbonate shell with painted lead interior

The BEXXAR Shipping System transports one Unit Dose Pig that houses a 60 cc syringe for the new radiotherapy drug BEXXAR. The pig is designed to reduce exposure while shipping I-131. The body of the pig is constructed of lead shielding encased in a polycarbonate shell and will hold a 60 cc syringe filled to 30 cc. The lead thickness of the pig, combined with the lead in the shipping container has been calculated to allow less than 50 mR at the surface of an ammo can. The system holds 160 mCi and meets DOT II shipping requirements.

Specifications

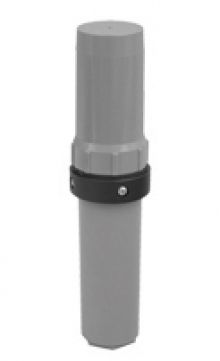

001-860 Unit Dose Pig

  • Dimensions: 10.30" l x 2.50" dia (26.2 x 6.35 cm)
  • Lead Shielding:
    - Top: .56" (1.4 cm)
    - Side: .26" (.66 cm)
    - Bottom: .50" (1.27 cm)
  • Weight: 6.5 lb (3 kg)

001-880 Shipping System, Unit Dose

  • Dimensions:
    - Container: Ammo Can exterior
    12" l x 6" w x 13.5 h (30.5 x 15.2 x 34.3 cm)
  • Lead Shielding:
    - Body: .26" thick (.66 cm)
    - Top: .56" thick (1.4 cm)
    - Bottom: .50" thick (1.2 cm)
  • Weight (Combined): 31 lb (14.1 kg)

Meets DOT II Type A packaging requirements when shipping up to 160 mCi of I-131 Bexxar®.

Complies with USA DOT 7A Type A Radioactive Material Requirements

Meets IATA Dangerous Goods Regulations, 47th Edition Sections 5.0.4.3, 10.5, and 10.6.1 thru 10.6.3.5.

001-880  Shipping System, Unit Dose, BEXXAR
                 Includes one 001-860 Unit Dose Pig

Component:

001-860  Pig, Unit Dose, BEXXAR
                 Accommodates a 60 cc syringe.

Related:

001-771  Sheets, Absorbent, 100/pkg

001-861  Discs, Charcoal Absorbent, 100/pkg
